Heat pump water heaters installed in San Jose homes
A hybrid heat pump heater moves heat from the air into the water instead of burning gas, and it needs the right space and circuit to work well.
- 24/7 answered
- Phelan Ave San Jose office
- Tank, tankless, heat pump
Perfect Tankless Plumbing, San Jose, CA
A heat pump water heater in San Jose needs a 240V circuit, enough surrounding air volume, and a condensate drain; we check all three before quoting, then remove the old tank, install the hybrid unit with seismic strapping and a permit, and set the operating mode for your household.
Updated September 2026
Water Heaters
When a heat pump heater makes sense
Heat pump water heaters use a small compressor to pull warmth from the surrounding air, which makes them far more efficient than an electric resistance tank. They are tank units, so they fit where a conventional heater sits, but they are taller and they cool and dry the room they are in.
The questions are practical: is there a 240V circuit or panel capacity for one, is the garage or closet big enough to breathe, and can condensate drain by gravity or does it need a pump. We answer those on site before you commit.
Cost factors
What the installed cost depends on
Incentives change the net price, so we list what drives the installed scope rather than a single figure.
- Electrical work. a new 240V circuit or panel upgrade is the largest variable
- Unit size. 50, 65 and 80 gallon models for different households
- Condensate route. gravity drain or a condensate pump
- Location. a garage swap is simpler than a closet with limited air
- Removing the gas heater. capping the gas line and flue
- Permit and strapping. seismic straps and a city permit on every install
Options
Heat pump, gas tank or tankless
| Heat pump tank | Gas tank | Gas tankless | |
|---|---|---|---|
| Fuel | Electric | Gas | Gas |
| Efficiency | Highest of the three | Lowest | High |
| Space | Tall, needs air around it | Compact | Wall-mounted |
| Hot water supply | Tank, recovers slower | Tank | Continuous |
| Extra work | 240V circuit, condensate | Venting | Gas upsizing, venting, condensate |
| Noise | A quiet fan hum | Burner sound | Fan and burner when running |
Included
What a heat pump install includes
- Panel and space assessment
- Unit sized to the household
- City of San Jose permit
- Old heater removal and disposal
- Seismic strapping
- Condensate drain or pump
- Operating mode set and explained
Hybrid 240V units
Most hybrid units run on a dedicated 240V circuit and fall back to built-in resistance elements when demand is high. If your old heater was gas, the circuit usually does not exist yet, and panel capacity decides whether adding one is simple or requires an electrician's upgrade. We check the panel on the first visit and coordinate the electrical side so the job is quoted as a whole. Some newer units run on a standard 120V outlet with a slower recovery, which can suit smaller households well.
Condensate and clearance planning

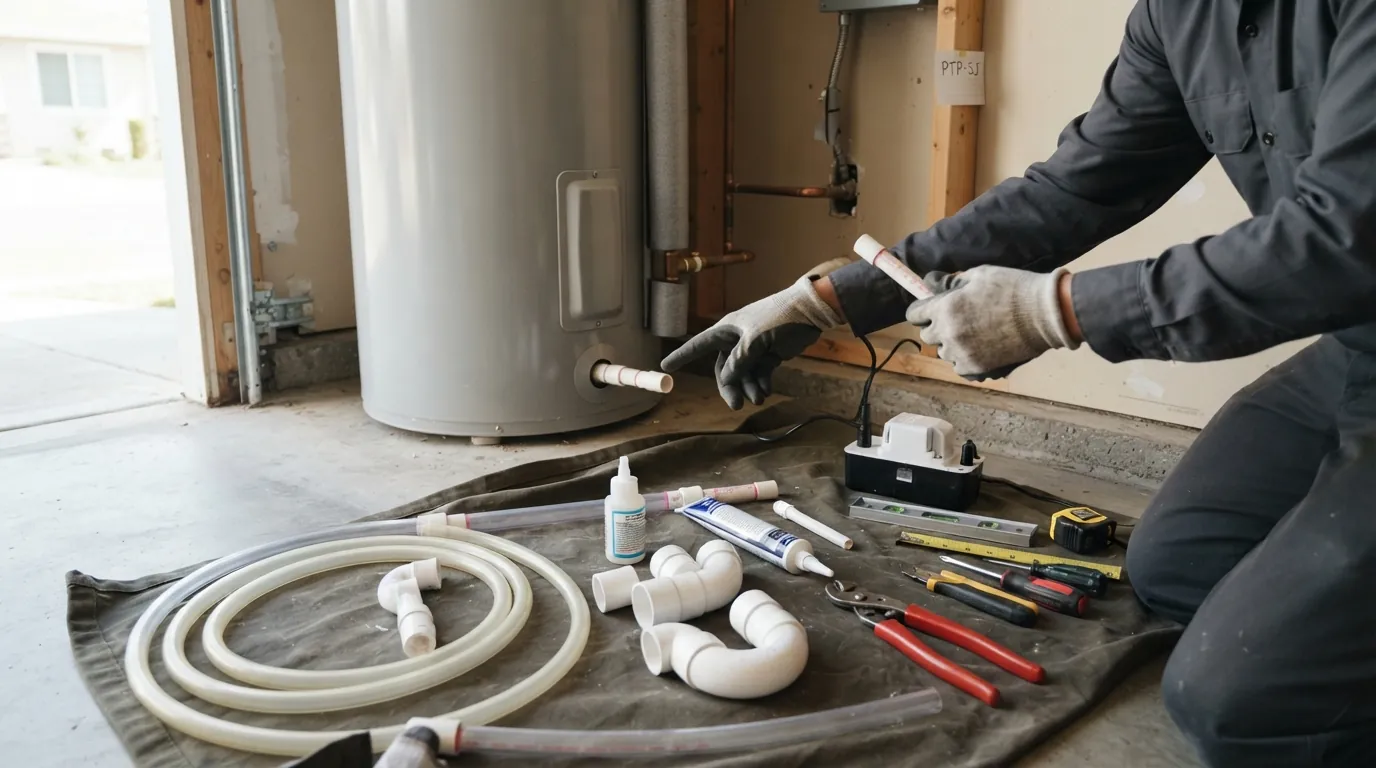

Pulling heat from the air produces condensate, a steady trickle of water that needs a drain. We run it to a floor drain, laundry standpipe or outside by gravity where possible, and fit a condensate pump when not. The unit also needs a minimum volume of air around it or a ducted supply, and it discharges cool air, which is welcome in a hot garage and less so in a small interior closet. We check clearances against the manufacturer's installation manual rather than guessing.
Rebate paperwork support
Heat pump water heaters are the target of federal tax credits and state and utility incentives, and the rules change often enough that we do not print amounts here. What we do is give you the model number, AHRI certificate details, the permit record and an itemized invoice, which are the documents incentive programs ask for. We tell you which program pages to check before you buy, so the unit you choose actually qualifies instead of discovering the gap after installation, when it is too late to change models.
Local context
Why heat pump conversions are growing in Santa Clara County
PG&E energy rates are among the highest in the country, and local plumbers across Santa Clara County report that the cost of heating water is pushing homeowners toward heat pump and tankless conversions. Hard water still applies: a heat pump unit is a tank with an anode rod, so the same two-to-three-year anode checks that protect a gas tank here protect this one. Garages in the South Bay rarely get cold enough to hurt efficiency, which helps the case.
How the job runs
How a heat pump install runs
- 1
Site check
Panel, space, air volume and condensate route.
- 2
Choose the unit
Size and voltage matched to the house.
- 3
Permit
Filed with the City of San Jose.
- 4
Remove the old heater
Cap gas and flue where applicable.
- 5
Install and strap
Water, condensate, electrical and seismic straps.
- 6
Set the mode
Heat pump, hybrid or high demand, explained.
FAQ
Heat Pump Water Heater Installation questions from San Jose homeowners
Yes. San Jose garages rarely get cold enough to hurt efficiency, and the unit cools and dehumidifies the space as it runs.
Most hybrid units need a dedicated 240V circuit. Some newer 120V models plug into a standard outlet with slower recovery.
Federal, state and utility programs exist and change often. We give you the model and permit documents programs ask for; check the program terms before buying.
There's a fan and compressor hum, similar to a refrigerator. It's noticeable in a closet next to a bedroom, less so in a garage.
Usually a day when the circuit is ready. Electrical upgrades can add time.
Same family
Related work in water heaters
Noritz Tankless Water Heater Repair
No ignition and flame failure, Scale and flow problems.
No ignition and flame failure and related workTankless Descaling and Flush
Isolation valve retrofit, Inlet filter cleaning.
Isolation valve retrofit and related workRinnai Tankless Water Heater Repair
Ignition and flame codes, Scale and overheat codes.
Rinnai Tankless Water Heater RepairTankless Water Heater Repair
Error code diagnosis, Ignition failure.
Tankless Water Heater RepairTankless Water Heater Installation
Gas tankless, Electric tankless.
Read about tankless water heater installation
From our guides: Tankless vs tank, Read the guide on heat pump water heaters, ADU plumbing.
One number, any hour
Plan a heat pump conversion
Call and we will check your panel, space and drain route before recommending a unit.
