Trenchless sewer lateral replacement in San Jose
Pipe bursting and lining replace a failed sewer lateral through two small pits instead of a trench across your yard.
- 24/7 answered
- Phelan Ave San Jose office
- Tank, tankless, heat pump
Perfect Tankless Plumbing, San Jose, CA
Trenchless sewer replacement in San Jose uses pipe bursting, which pulls new HDPE pipe through the old one, or cured-in-place lining, which forms a new pipe inside it; published 2026 figures put a San Jose lateral at roughly $5,500 to $14,000 by bursting versus $9,000 to $22,000 open cut.
Updated September 2026
Drains & Sewer

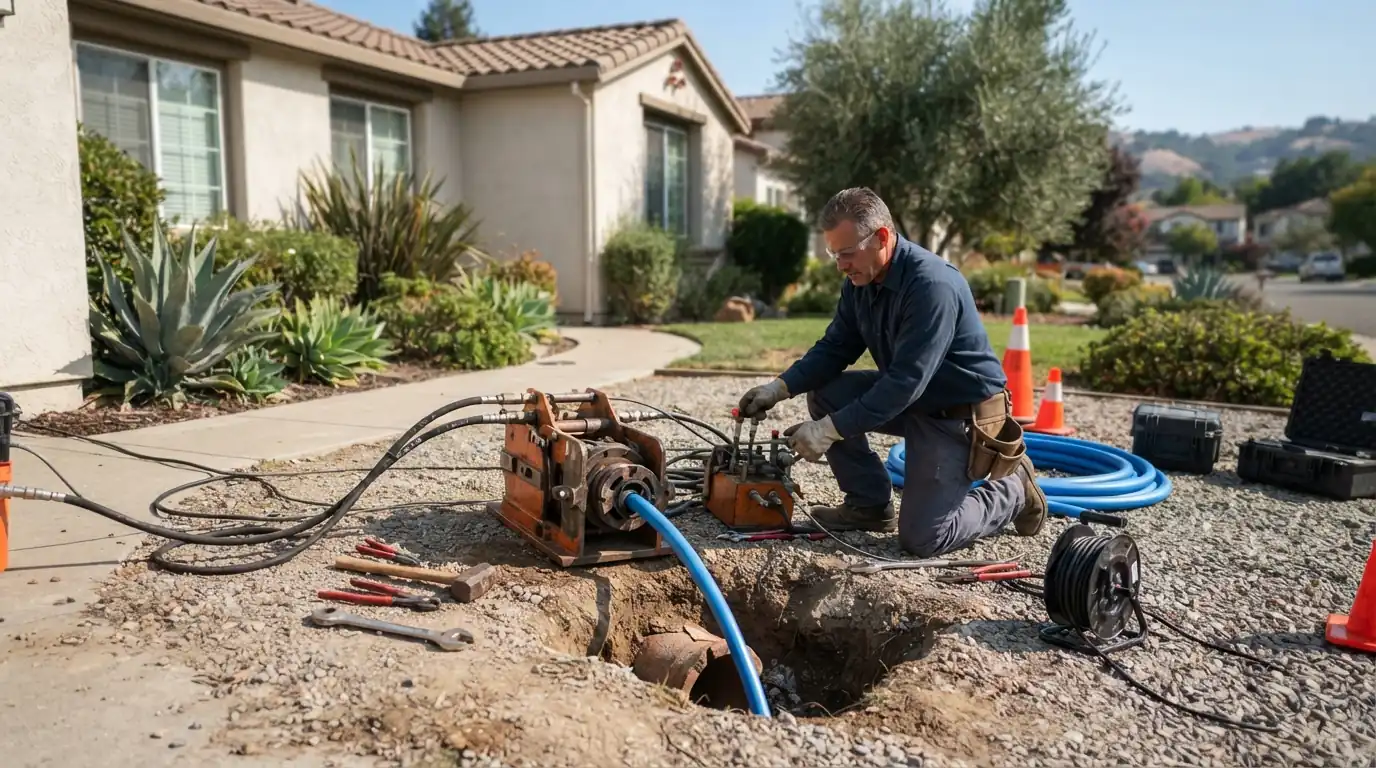

How trenchless replacement works
A conventional sewer replacement digs a trench from the house to the street. Trenchless methods need an entry pit near the house and an exit at the connection, and the new pipe goes in underground between them. Lawns, driveways, trees and hardscape stay mostly intact.
Not every line qualifies. A collapsed section, a severe belly or a line with too many bends may still need excavation at those points. The camera inspection decides which method fits your lateral.
Cost factors
What trenchless replacement costs in San Jose
The published figures below are for a typical San Jose lateral; the camera footage and the route decide where yours falls.
- Sewer lateral replacement (San Jose, 45-80 ft run)$5,500 to $14,000 trenchless pipe bursting; $9,000 to $22,000 open cut. Planning range from plumbingpriceguide.com, not our quote.
- Length of the lateral. longer runs need more pipe and pull force
- Method. bursting and lining price differently
- Depth. deeper pits take more excavation
- Sidewalk crossing. encroachment permit and concrete restoration
- Condition of the host pipe. collapsed sections may need spot excavation
- Cleanout work. adding a two-way cleanout at the house
Options
Bursting, lining or open trench
| Pipe bursting | CIPP lining | Open cut | |
|---|---|---|---|
| Digging | Two pits | Often one or two pits | Full-length trench |
| New pipe | Joint-free HDPE | Resin liner inside old pipe | New PVC |
| Pipe size | Same or larger | Slightly smaller | Any |
| Suits | Cracked but continuous lines | Cracked lines holding shape | Collapsed or badly sagged lines |
| Yard impact | Low | Lowest | High |
| Typical San Jose range | About $5,500 to $14,000 | Varies with length | About $9,000 to $22,000 |
Pipe bursting
Pipe bursting pulls a cone-shaped bursting head through the old pipe, fracturing it outward while a new high-density polyethylene pipe follows directly behind. The new line is joint-free and usually the same size or one size larger than the old one. It suits clay and cast iron laterals that are cracked and root-invaded but still continuous. We dig a pit at each end, fuse the new pipe on site, pull it through with a hydraulic unit, and reconnect at the cleanout and the city side.
Cured-in-place lining
Lining inserts a resin-saturated felt tube into the cleaned host pipe, inflates it, and cures it in place, forming a new pipe inside the old one. It needs less digging than bursting, sometimes only the existing cleanout, and suits lines that are cracked but still hold their shape. It reduces the inside diameter slightly and depends on a thoroughly cleaned wall, so we jet and camera before lining, and camera again after curing to confirm the liner has bonded and the branch connections are reopened.
Sidewalk crossing and encroachment permits
Many San Jose laterals cross the public sidewalk before reaching the main, and work in that right-of-way needs an encroachment permit from the city in addition to the plumbing permit. We pull both, plan pits to avoid cutting sidewalk where possible, and restore any concrete to city standard when cutting cannot be avoided. The inspection at the end covers both the pipe and the right-of-way restoration, so we schedule it once the surface is finished and the concrete has been restored to the city's standard.
Local context
Slab tracts, lateral rules and where trenchless helps most
Point-of-sale rules here mean a sewer lateral must pass video and pressure tests before a house changes hands, and a lateral crossing the sidewalk needs a right-of-way encroachment permit. Trenchless work pays off most where digging is costly: the slab-on-grade tracts built across Berryessa, Evergreen and Cambrian Park in the 1960s and early 1970s often have mature landscaping, driveways and hardscape over the line that a trench would destroy, and restoring those surfaces is a large share of an open-cut bill.
How the job runs
How a trenchless job runs
- 1
Camera and locate
Record the line and mark route and depth.
- 2
Choose the method
Bursting, lining or a mix.
- 3
Permits
Plumbing and, where needed, encroachment.
- 4
Dig access pits
At the house and the connection.
- 5
Replace the line
Pull or cure the new pipe.
- 6
Test and restore
Camera, pressure test, backfill and surface repair.
Timing
How long you are without the sewer
Most trenchless lateral replacements finish in one to two days, and household drains are usually out of use only while the new pipe is being connected.
Permits and the final inspection add calendar time before and after, especially when the city's right-of-way permit is involved.
FAQ
Trenchless Sewer Replacement questions from San Jose homeowners
Published San Jose figures put bursting below open-cut replacement, largely because less surface has to be restored.
Only at the access pits. The rest of the yard stays intact.
Yes. Pipe bursting is commonly used on cracked clay laterals.
Yes, a plumbing permit, plus an encroachment permit if the lateral crosses the public sidewalk.
A new lateral is tested and camera-recorded at completion, which supports compliance.
Same family
Related work in drains & sewer
Main Sewer Line Cleaning
Cleanout access, Cable rootering.
How we handle main sewer line cleaningSewer Camera Inspection
Point-of-sale lateral inspection, Locating and depth marking.
Sewer Camera InspectionStorm and Yard Drain Service
Area drain clearing, Downspout tie-ins.
Storm and Yard Drain ServiceSewer Line Repair
Spot repair, Root intrusion.
Spot repair and related workSewer Odor and Smoke Testing
Dry traps and failed seals, Vent pipe leaks.
How we handle sewer odor and smoke testing
From our guides: Our lateral inspection before selling guide, Trenchless vs open cut.
